203591 Go Cart Belt Yerf dog go kart belt 6.5hp belt Yerf dog go kart parts carter go-kart belt

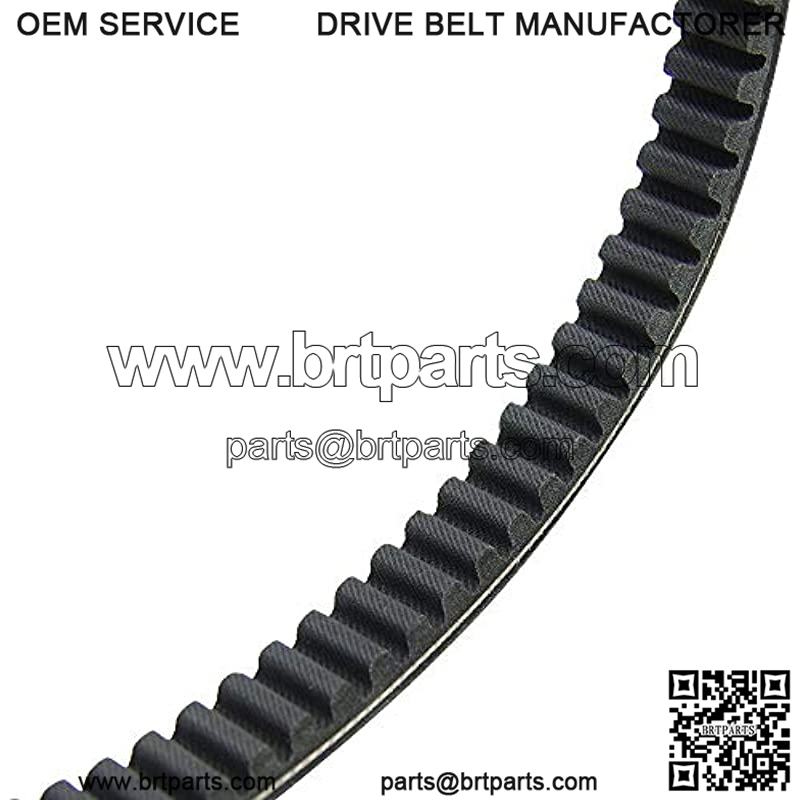

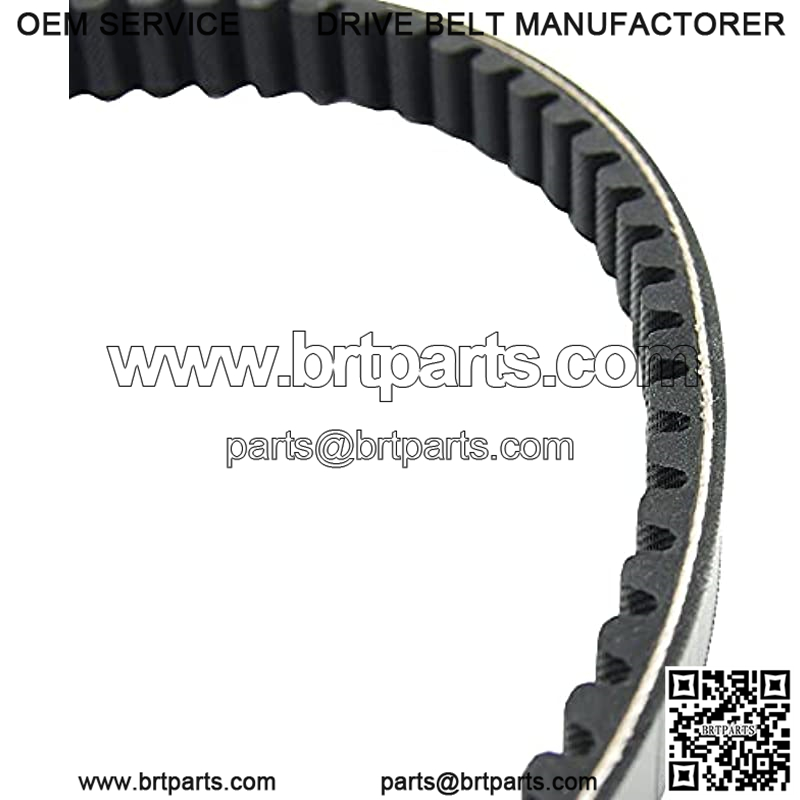

30 Series Go Kart Belt 203591-Q43203W Yerf-dog Go Cart Belt
Fitment:all Yerf-dog go-karts with Tecumseh engines and belt driven torque-converters. For 203591 Q43203W Yerf-dog Manco carter 5.5hp 6.5hp go kart.

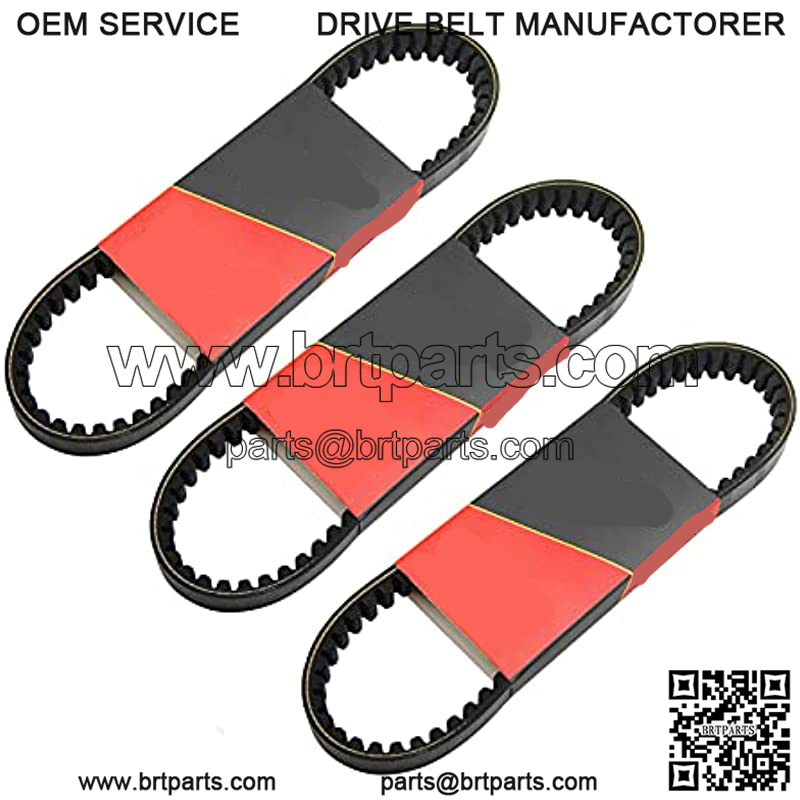

Size:3/4″ x 29 9/32”Outside Cicumference,3PCS/SET

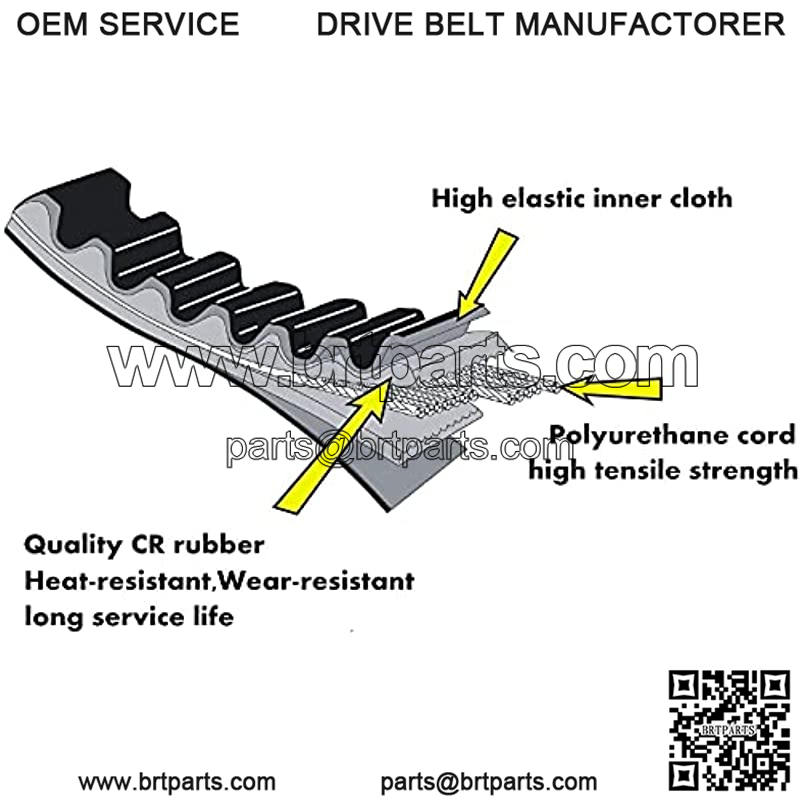

Features:quality aramid fiber reinforced and CR rubber oil and heat resistant,Excellent flexibility and resistance to lateral pressure,smooth transmission,excellent flex, long service life. 203591-Q430203W belt for Yerf-dog go-karts with Tecumseh engines and belt driven torque-converters.
Items:3??Go Kart Comet 30 Series/Yerf Dog Drive Belt
Model: Comet 30 Series torque converters 3hp to 8hp engines
Part No: Comet Part #s: 203591, 203591A, 203591B, 203591C.
Yerf Dog Part #s: Q43103W & Q43203W
Kartco Part #: 7655
Rotary Part #: 10052
Features:reinforced belt,Wear-resistant ,high tensile strength
Specifications:3/4″” Top Width Wide, 20 1/2??, 29 9/32” length, Asymmetric (18?? + 2 1/2??) angled each side
Fitment:
The asymmetrical cog belt used on all Yerf-dog go-karts with Tecumseh engines and belt driven torque-converters.
For 203591 Q43203W Yerf-dog Manco carter 5.5hp 6.5hp go kart(1400,3002,3200,3202,3203,3203A,3205,30021,30034A,32001,33002,33200)
Pulley needs to be from 7 9/16 inch to 7 5/8 inch(6″ PULLEY), or from 6 13/16 to 6 7/8 inch(7″ PULLEY) (measured from the center of the clutch to the center of the driven pulley).
