56-1/4" x 5/8" Deck Drive Belt for Exmark ?C Replaces 1-403105 / 403105
56-1/4" x 5/8" Deck Drive Belt for Exmark ?C Replaces 1-403105 / 403105
56-1/4″ x 5/8″ Deck Drive Belt for Exmark ?C Replaces 1-403105 / 403105
Premium Quality Replacement Part

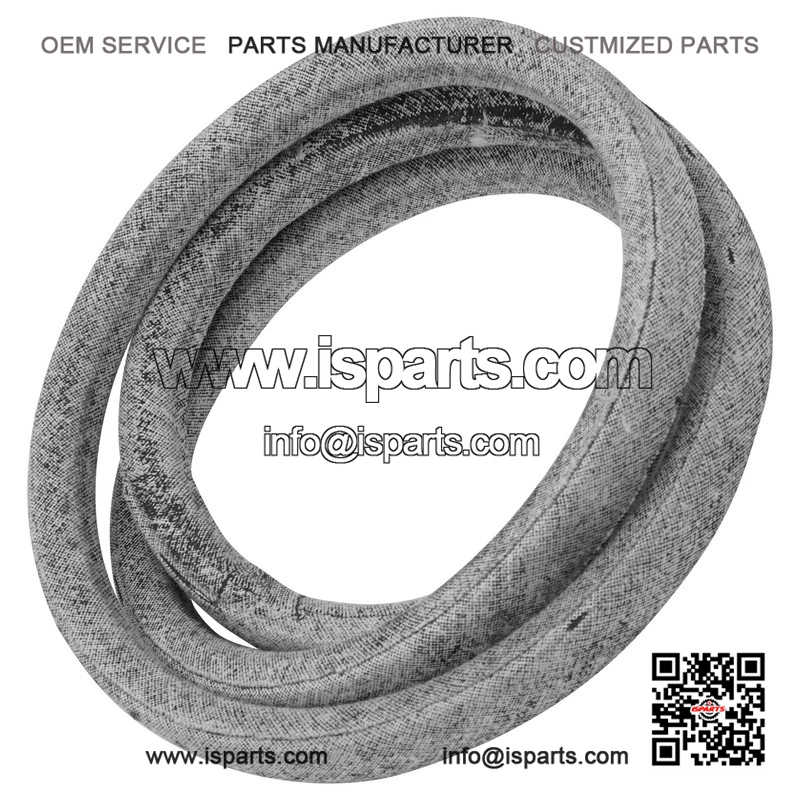

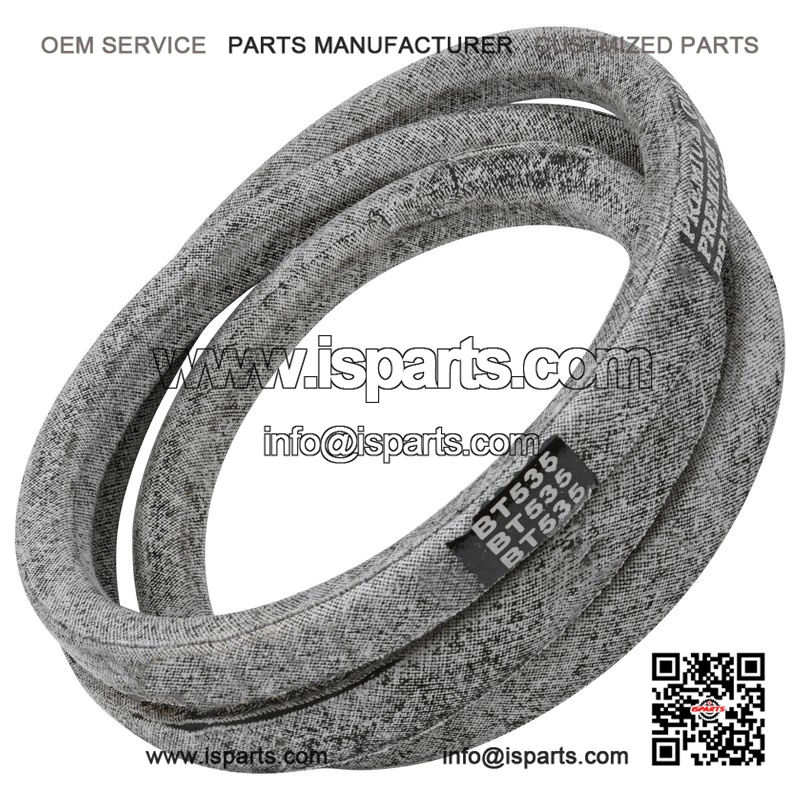

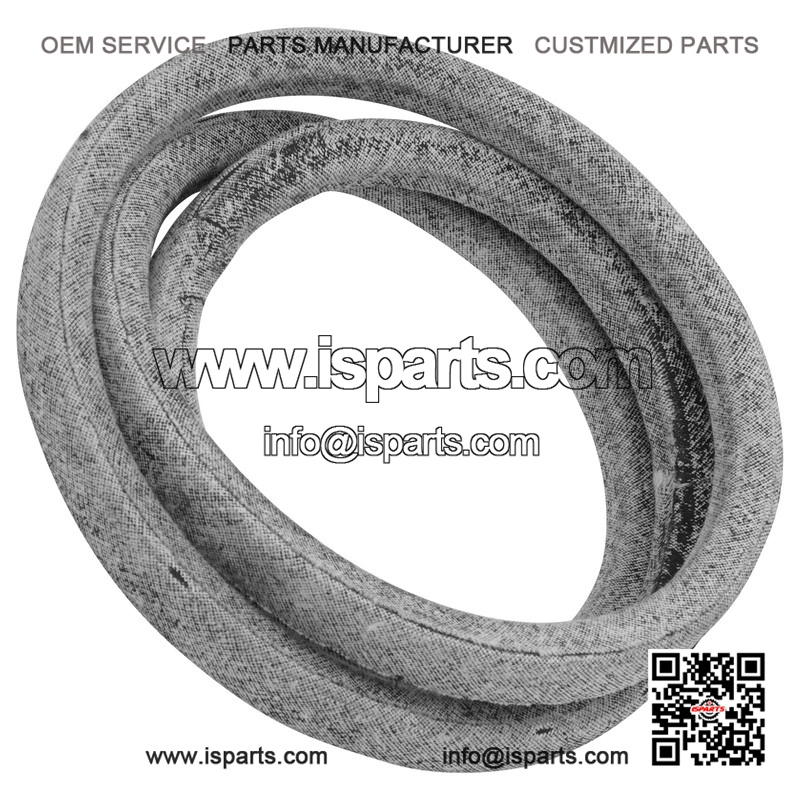

Deck Drive V-Belt
Compatible with Scag Models:
Mower Deck 52″
SM 52 (SN: 4160001 to 4169999)
SMZ 52 Super Z (SN: 4240001 to 4249999)
Super Z Zero-Turn Mowers
SSZ 18CV 18hp Koh. (SN: 60001 – 79999)
SSZ 20CV 20hp Koh. (SN: 3460001 to 3469999)
(SN: 40000 – 49999)
(SN: 60001 – 79999)
SSZ 22CV 22hp Koh. SN: 3470001 – 3479999
(SN: 40000 – 49999)
(SN: 4230001 – 4239999)
(SN: 60001 – 79999)
Three-Wheel Riding Mowers
STHM 18KH 18hp Koh. (SN: 1001 to 9999)
STHM 20CV 20hp Koh. (SN: 3380001 to 3389999)
(SN: 40000 – 79999)
STHM 20KH 20hp Koh. (SN: 01001 – 09999)
(SN: 30000 – 39999)
STHM 22CH 22hp Koh. (SN: 3380001 to 3389999)
STHM 22CV 22hp Koh. (SN: 40000 – 69999)
Compatible with Exmark Models:
Metro Walk-Behind Mower 52″
M32-12.5K-5 12.5hp Kw. (SN: 102000 – 129999) (1995-1996)
M32-12.5KO-5 12.5hp Koh. (SN: 102000 – 129999) (1995-1996)
M32-8.5B-5 8.5hp B&S (SN: 102000 – 129999) (1995-1996)
M3213KA, M3613KA 13hp Kw. (SN: 130000 – 149999) (1997)
M3213KC, M3613KC 13hp Koh. (SN: 130000 – 149999) (1997)
M329B 9hp B&S (SN: 130000 – 149999) (1997)
M36-12.5K-5 12.5hp Kw. (SN: 090000 – 129999) (1994-1996)
M36-12.5KO-5 12.5hp Koh. (SN: 090000 – 129999) (1994-1996)
M36-14K-5 14hp Kw. (SN: 090000 – 129999) (1994-1996)
M36-14KO-5 14hp Koh. (SN: 090000 – 129999) (1994-1996)
M3614KA 14hp Kw. (SN: 130000 – 149999) (1997)
M3615KC 15hp Koh. (SN: 130000 – 149999) (1997)
Compatible with Snapper Models:
Deck Size 52″
80682 PP71404KV, 14 HP
80683 PL71404KV, 14 HP
80683 PL7H1404KV, 14 HP
80685 PL71254KV, 12.5 HP
80686 PP71404KWV, 14 HP
80687 PP71254KW, 12.5 HP
80695 PL71404KWV, 14 HP
80695 PL7H1404KWV, 14 HP
80703 PP7H1404KWV, 14 HP
80704 PL7H1604BV, 16 HP
80706 PMHA7484
80707 PMA7524
80717 PP71604BV, 16 HP
80719 PL7H1804BVE, 18 HP
PP71604BV 16 HP
PP7H1404KWV (80703) 14 HP Pro
Compatible with Snapper Pro Models:
7080682 PP71404KV, 14HP Koh.
7080683 PL71404KV, 14HP Koh.
7080685 PL71254KV, 12.5HP Koh.
7080686 PP71404KWV, 14HP Kw.
7080687 PP71254KW, 12.5HP Kw.
7080695 PL71404KWV, 14HP Kw.
7080707 PMA7524
7080717 PP71604BV, 16HP B&S
Order Includes:
1 x V Belt: For Scag: 48285
For Bobcat: 38389
For Exmark: 1-403105, 403105
For Snapper: 7027347YP, 7027347, 27347

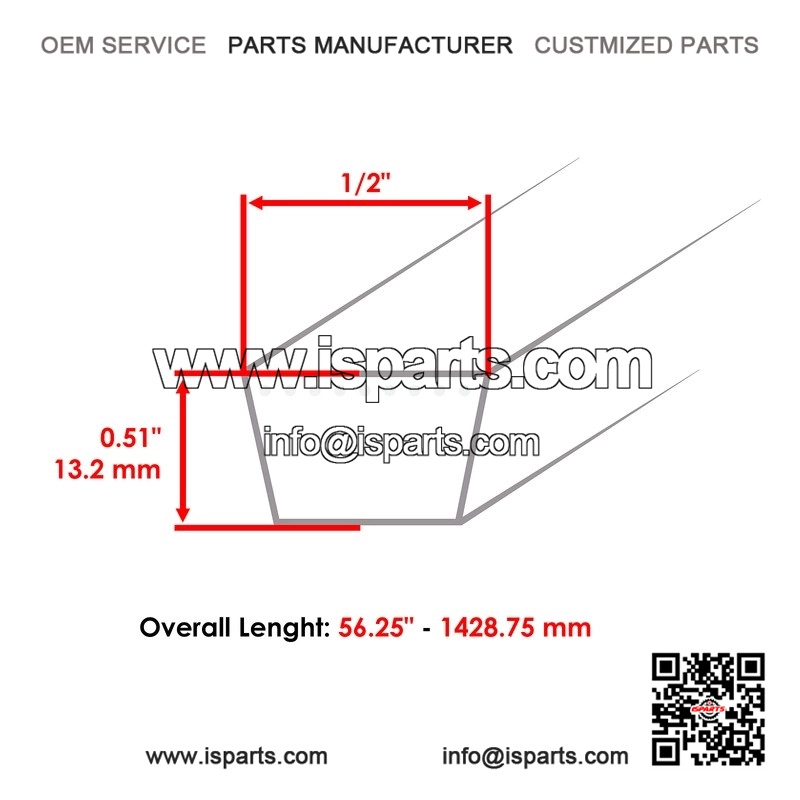

Length: 1428.75 mm – 56.25 in
Width: 12.7 mm – 0.5 in
Thickness: 13.2 mm – 0.51 in
Weight: 9.3 oz
